Erection anchors are crucial in the construction industry, primarily used for lifting and positioning precast concrete elements such as walls, beams, and panels. These anchors are embedded in the concrete components during the manufacturing process and are designed to handle the significant loads and stresses associated with lifting and installation.
The key function of erection anchors is to provide safe and efficient handling of heavy precast elements, reducing the risk of damage and ensuring precise placement. They are typically made from high-strength steel and come in various designs to accommodate different lifting requirements and angles.
Using erection anchors enhances construction safety and productivity by allowing for faster and more accurate assembly of structures. Their reliability and strength are vital in ensuring that precast components are securely lifted, transported, and positioned, contributing to the overall integrity and stability of the completed building.
100% Follow Original Designer Drawings and Tolerance
Customized Materials:
Q345D,SS316
Customized Surface Treatment:Plain (Original),Zinc Plating,H.D.G.

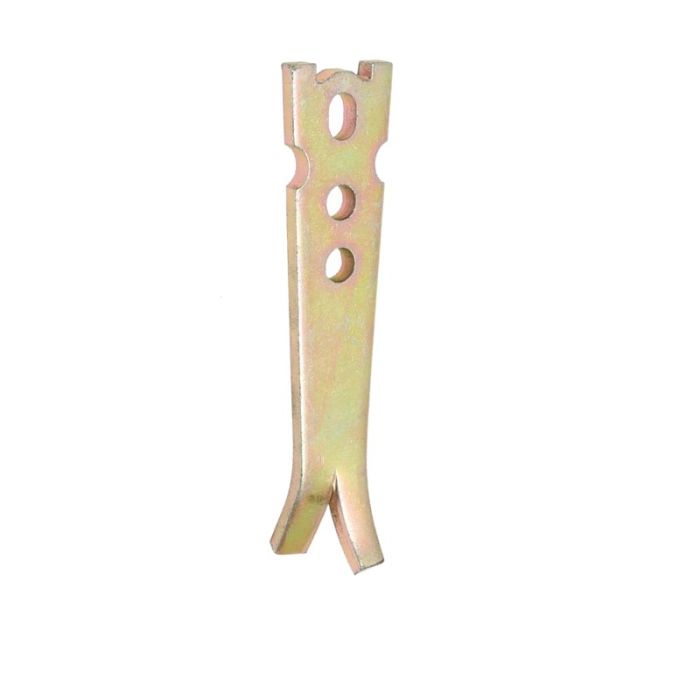

Split Foot Erection Anchor Products Specification
| Item Code | Size | SWL (KN) | a | c | t | h | Weight (kg) |
|---|---|---|---|---|---|---|---|
| FL01014200 | 1.4T | 14 | 55 | 45 | 6 | 200 | 0.47 |
| FL01025230 | 2.5T | 25 | 55 | 45 | 10 | 230 | 0.79 |
| FL01040270 | 4.0T | 40 | 70 | 70 | 12 | 270 | 1.40 |
| FL01050290 | 5.0T | 50 | 70 | 70 | 15 | 290 | 1.76 |
| FL01075320 | 7.5T | 75 | 95 | 90 | 15 | 320 | 2.52 |
| FL01100390 | 10.0T | 100 | 95 | 90 | 20 | 390 | 4.05 |
| FL01125500 | 12.5T | 125 | 148 | 90 | 20 | 500 | 6.74 |
| FL01170500 | 17.0T | 170 | 148 | 90 | 25 | 500 | 8.28 |
| FL01220500 | 22.0T | 220 | 148 | 90 | 30 | 500 | 9.94 |

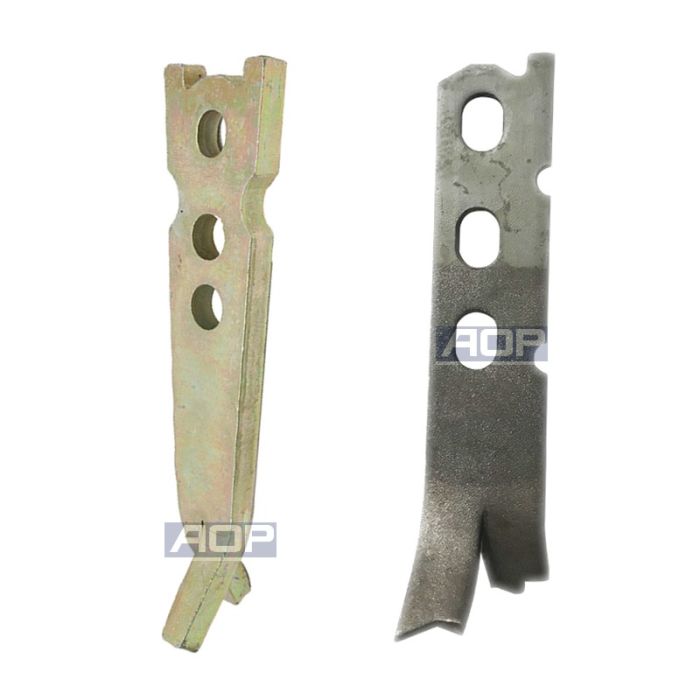

One Sided Erection Anchor Products Specification
| Item Code | Size | SWL (KN) | a | c | t | h | Weight (kg) |
|---|---|---|---|---|---|---|---|
| FL02014200 | 1.4T | 14 | 40 | 42.2 | 6 | 200 | 0.43 |
| FL02025230 | 2.5T | 25 | 40 | 42.5 | 10 | 230 | 0.76 |
| FL02040270 | 4.0T | 40 | 55 | 50.5 | 12 | 270 | 1.34 |
| FL02050290 | 5.0T | 50 | 55 | 50.5 | 15 | 290 | 1.75 |
| FL02075320 | 7.5T | 75 | 80 | 78.0 | 15 | 320 | 3.87 |
| FL02100390 | 10.0T | 100 | 80 | 78.0 | 20 | 390 | 4.44 |
| FL02125500 | 12.5T | 125 | 115 | 88.5 | 20 | 500 | 6.10 |
| FL02170500 | 17.0T | 170 | 115 | 88.5 | 25 | 500 | 7.42 |
| FL02220500 | 22.0T | 220 | 115 | 88.5 | 30 | 500 | 9.08 |
