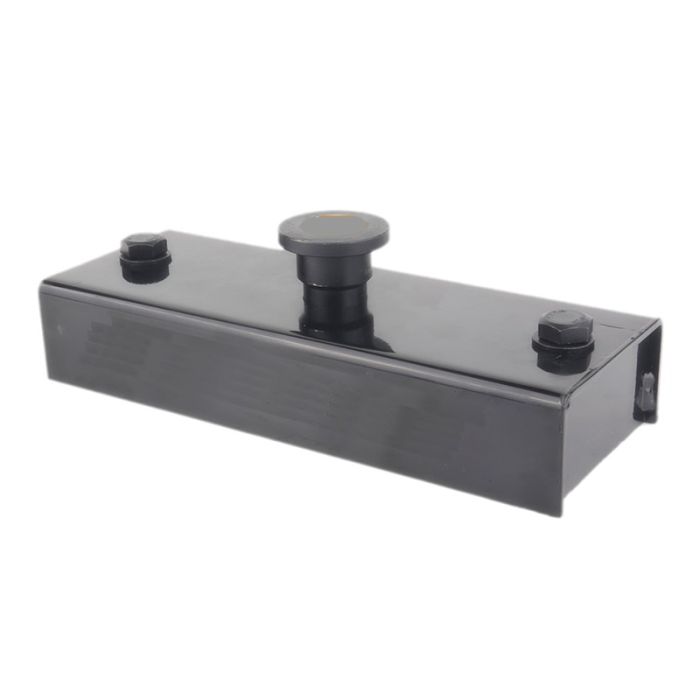

AOP Precast Shuttering Magnet – Fast, Accurate, Tool-Free Formwork Fixing.
AOP Precast offers high-performance shuttering magnets for secure, efficient fastening of steel and timber formwork during precast concrete production.
Embedded high-strength neodymium magnetic cores provide pull forces from 450 kg up to 2,400 kg, eliminating the need for drilling, welding, or bolting to steel casting beds.
Simply place the magnet, activate with a push-button, and it locks firmly—when ready, lift the button to release the formwork cleanly and safely .
Up to 70% faster setup compared to traditional fixing methods.
Protects mold tables, extending equipment life and reducing wear.
Fully adaptable—threaded holes allow custom adapters for various formwork panel shapes and heights.
Durable, corrosion-resistant casing ensures long service life in harsh plant environments.
Customized Case Materials:
High-strength Carbon Steel,SS316,SS304
Customized Case Thickness:From 3mm~ 8mm Case Thickness to get more strength and long~term life.
Customized Retainning Force and Boxes Size:For your special applicant.
Normal Shuttering Magnets Products Specification
| Item Code | Retainning Force | L | W | H | Weight (kgs) |
|---|---|---|---|---|---|
| FW010450 | 450KGS | 170 | 60 | 40 | 1.9 |
| FW010900 | 900KGS | 280 | 60 | 40 | 3.6 |
| FW011350 | 1350KGS | 360 | 90 | 60 | 5.9 |
| FW011800 | 1800KGS | 320 | 120 | 60 | 7.3 |
| FW012100 | 2100KGS | 320 | 120 | 60 | 7.6 |
| FW012400 | 2400KGS | 320 | 120 | 60 | 8.3 |
