Cast In Plate

$1.00

In stock

SKU

AUCP000

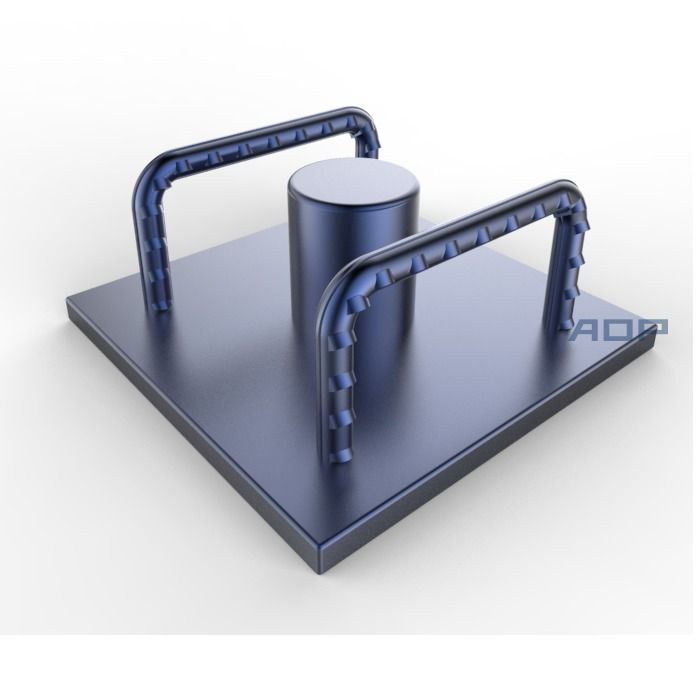

Cast-in plates are crucial components used in precast concrete construction to provide secure attachment points for various fixtures and equipment. Embedded into the concrete during the casting process, this plate creates a strong, stable base for connecting other elements, such as brackets, bolts, or structural supports.

Made from durable materials like steel, cast-in plates are designed to withstand significant loads and stresses. They are precisely positioned in the mold to ensure accurate alignment and secure integration into the final concrete element.

Using cast-in plates simplifies the installation of fixtures and components, improving overall efficiency on the construction site. Their robust construction ensures reliable performance and enhances the structural integrity of the concrete. Cast-in plates are essential for achieving precise, secure connections and streamlining the assembly process in modern precast concrete projects.

Customized Materials:Q235,45#,SS316,SS304

Customized Surface Treatment:Zinc Plating,H.D.G.

D Bar Cast In Plate Products Specification

Item Code	Size	SWL (KN)	L	W	H	T	D-Bar	Surface	Weight (kg/piece)
PF042020120	M20	25	200	200	120	12	2	Black	1.3
PF043020120	M20	25	300	200	120	16	3	Black	1.3
PF043020090	M20	25	300	200	90	16	3	Black	1.3
PF043020090	M20	25	300	200	90	16	3	HDG	1.3
PF04303090B	M20	25	300	300	90	12	3	Black	1.3
PF04303090H	M20	25	300	300	90	12	3	HDG	1.3
PF043030090	M20	25	300	300	90	16	3	Black	1.3
PF044020120	M20	25	400	200	120	16	4	Black	1.3
PF044020090	M20	25	400	200	90	16	4	Black	1.3
PF045020120	M20	25	500	200	120	16	4	Black	1.3
PF045020090	M20	25	500	200	90	16	4	Black	1.3
PF046020120	M20	25	600	200	120	16	5	Black	1.3
