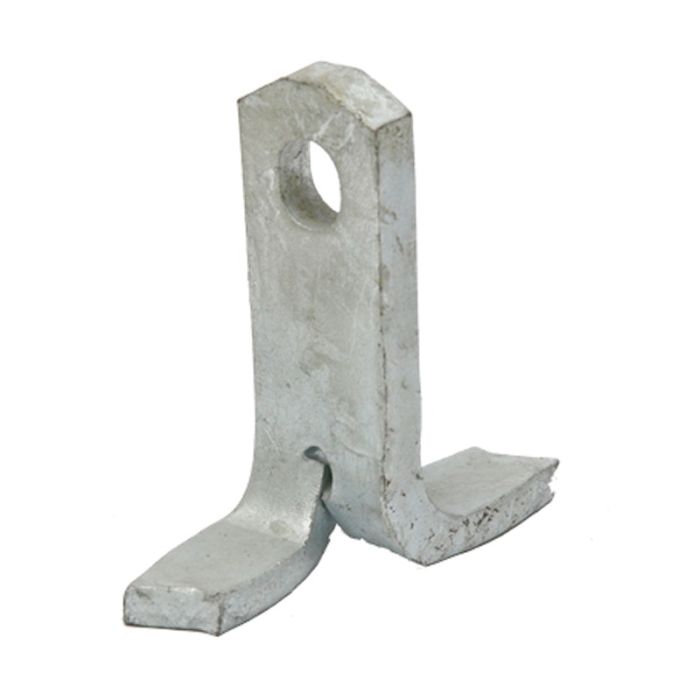

Concrete plate anchors are essential components in construction, used to secure structures and ensure stability. These anchors are typically flat metal plates embedded in concrete, serving as reliable points of attachment for various structural elements. They play a crucial role in both residential and commercial buildings, providing support for walls, columns, and other load-bearing components.
The installation of concrete plate anchors involves precise positioning and embedding within freshly poured concrete, ensuring a secure bond as the concrete cures. This integration offers superior load distribution and resistance to forces such as tension and shear. Additionally, concrete plate anchors are vital in applications requiring seismic resilience, as they help absorb and dissipate energy during earthquakes.
Their durability and strength make them indispensable in construction projects, contributing to the overall safety and longevity of buildings. Thus, concrete plate anchors are fundamental to modern engineering, ensuring that structures remain secure and robust.
Customized Materials:
Q345D,SS316,SS304
Customized Surface Treatment:Plain (Original),Zinc Plating,H.D.G.
Plate Anchor Products Specification
| Item Code | Size | SWL (KN) | a | t | h | c | T | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FL050140055 | 1.4T | 14 | 30 | 6 | 55 | 80 | 8 | 0.59 |
| FL050250080 | 2.5T | 25 | 30 | 10 | 80 | 80 | 8 | 0.65 |
| FL050500120 | 5T | 50 | 40 | 15 | 120 | 100 | 10 | 1.36 |
| FL051000160 | 10T | 100 | 60 | 20 | 160 | 140 | 12 | 3.25 |
Contact Us to get product catalogue
