A precast lifting clutch is a critical component in the handling and transportation of precast concrete elements. Designed to securely connect to embedded lifting anchors within the concrete, these clutches facilitate the safe and efficient movement of heavy and complex precast structures. Made from high-strength steel, lifting clutches are engineered to handle substantial loads and are rigorously tested to meet safety standards.
The operation of a lifting clutch is straightforward yet highly effective. Once attached to the lifting anchor, the clutch locks into place, ensuring a secure connection that prevents slippage during lifting. This secure connection is vital for the safety of both the workers and the structural integrity of the concrete elements. By using precast lifting clutches, construction projects can achieve greater efficiency, reduced handling time, and enhanced safety, making them an indispensable tool in modern precast concrete operations.
More Safe Factors
Customized Surface Treatment:
Zinc Plating,H.D.G.

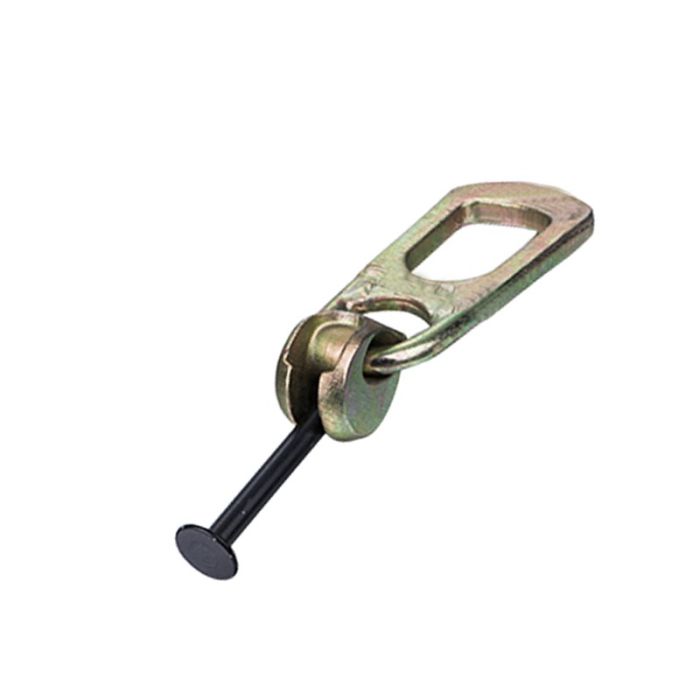

Lifting Eye Products Specification
| Item Code | Size | SWL (lbs) | H | f | T | d | C | s | B | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| DB0501T | 1T-1.3T | 2600 | 7-11/32" | 3" | 1/2" | 1-3/4" | 2-3/4" | 15/32" | 1-5/16" | 2.17 |
| DB0502T | 1.5T-2.5T | 5000 | 9" | 3-1/2" | 5/8" | 2-1/8" | 3-3/8" | 11/16" | 1-5/8" | 3.45 |
| DB0504T | 3T-5T | 10000 | 11" | 4-11/16" | 11/16" | 2-5/8" | 3-7/16" | 29/32" | 2-1/4" | 7.82 |
| DB0508T | 6T-10T | 20000 | 15-1/2" | 6-1/4" | 1-1/16" | 3-1/8" | 4-3/8" | 1-1/4" | 2-15/16" | 21.93 |
| DB0520T | 12T-20T | 40000 | 20" | 7-11/16" | 1-3/8" | 4-3/8" | 5-15/16" | 1-11/16" | 4-3/8" | 45.07 |
Rapid Lifting Clutch Products Specification
