Plastic Nail Plate

$1.00
In stock
SKU
AOPNP000

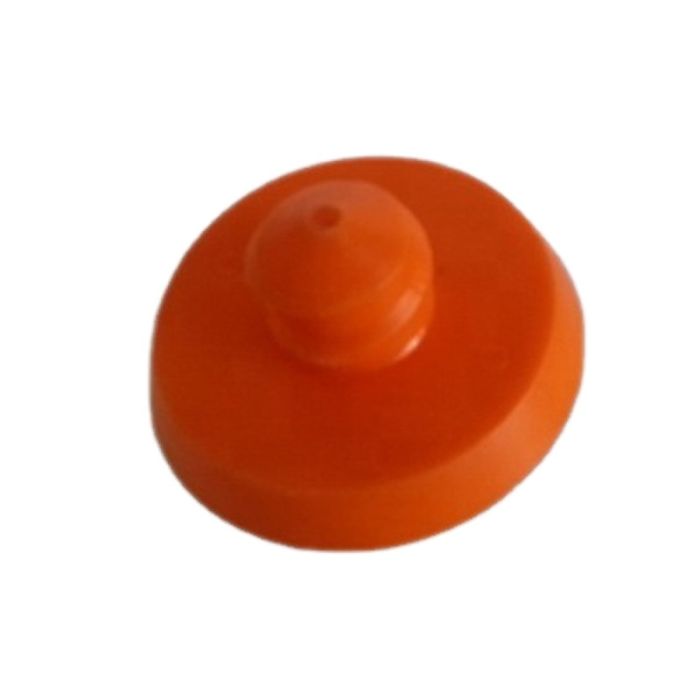

AOP plastic nail plate is a standard necessary parts to help your sockets/inserts to fixed wood formwork in precast concrete. There have two or three nail hole to use nail fixed to wood formwork. There also are plastic screw bar to fix the socket thread. You can fix the nail plate to wood formwork at first and then thread the screw bar into sockets or inserts thread. After then to removable the nail plate. The plastic socket holder can reuse many times.RD or M thread are both available

Item Code Thread Size Dimension (mm) Weight (g/piece)
a b e f
FSNP010058 M10 48 58 11 10 6.0
FSNP012058 M12 48 58 11 10 9.0
FSNP014058 M14 48 58 11 10 7.0
FSNP016058 M16 48 58 11 10 10.0
FSNP018058 M18 48 58 11 10 8.0
FSNP020058 M20 48 58 11 10 11.0
FSNP024058 M24 48 58 11 10 12.0
FSNP030058 M30 48 58 11 10 16.0
