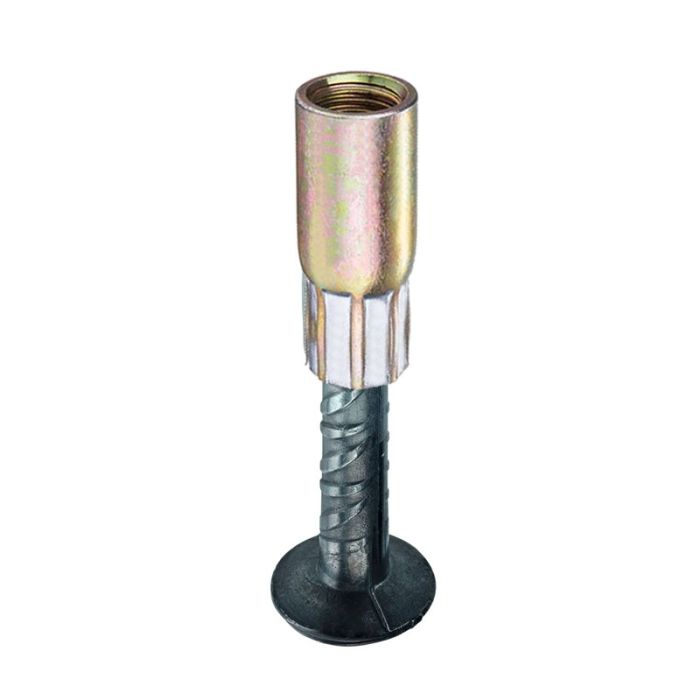

We are a professional OEM manufacturer specializing in Foot Mounted Anchor for precast concrete lifting systems. Our Foot Mounted Anchor feature a high-quality seamless steel pipe socket that is firmly swaged to high-strength Forged Foot Baosteel rebar using a high-tonnage swaging machine. This ensures a secure and reliable connection with excellent load-bearing performance. Fully customizable dimensions are available to meet your specific project requirements.
Professional OEM / ODM manufacturer specializing in Foot Mounted Anchors
Socket made from high-quality seamless steel pipe
Firmly swaged to high-strength Baosteel threaded rebar using high-tonnage swaging machine
Strong and reliable connection with high safety factor
Excellent anchorage performance in precast concrete elements
Fully customizable sizes plus Testing Tensile are available
Professional Materials:
Seamless steel pipe socket, BaoSteel Rebar
Customized Materials Type:16Mn,SS316,SS304
Customized Surface Treatment:Zinc Plating,H.D.G.
Foot Mounted Anchor Products Specification
| Item Code | Size | Load (KN) | D | b | ds | e | h | Weight (kg/piece) |
|---|---|---|---|---|---|---|---|---|
| LF0912100 | Rd12 | 5 | 15.0 | 25 | 8 | 22 | 100 | 0.16 |
| LF0912150 | Rd12 | 5 | 15.0 | 25 | 8 | 22 | 150 | 0.18 |
| LF0916130 | Rd16 | 12 | 21.0 | 25 | 10 | 27 | 130 | 0.24 |
| LF0916175 | Rd16 | 12 | 21.0 | 25 | 10 | 27 | 175 | 0.27 |
| LF0920185 | Rd20 | 20 | 27.0 | 35 | 14 | 35 | 185 | 0.44 |
| LF0920250 | Rd20 | 20 | 27.0 | 35 | 14 | 35 | 250 | 0.53 |
| LF0924200 | Rd24 | 25 | 31.0 | 35 | 14 | 43 | 200 | 0.52 |
| LF0924275 | Rd24 | 25 | 31.0 | 35 | 14 | 43 | 275 | 0.62 |
| LF0930275 | Rd30 | 40 | 39.5 | 45 | 20 | 56 | 275 | 1.15 |
| LF0930350 | Rd30 | 40 | 39.5 | 45 | 20 | 56 | 350 | 1.36 |
| LF0936450 | Rd36 | 63 | 47.0 | 60 | 25 | 68 | 450 | 2.37 |
| LF0942500 | Rd42 | 80 | 54.0 | 70 | 28 | 80 | 500 | 3.30 |
| LF0952550 | Rd52 | 125 | 67.0 | 80 | 32 | 100 | 550 | 5.77 |
